Re: Jetting!!! Again and again and again!
« Reply #510 on: November 17, 2015, 10:39:58 AM »

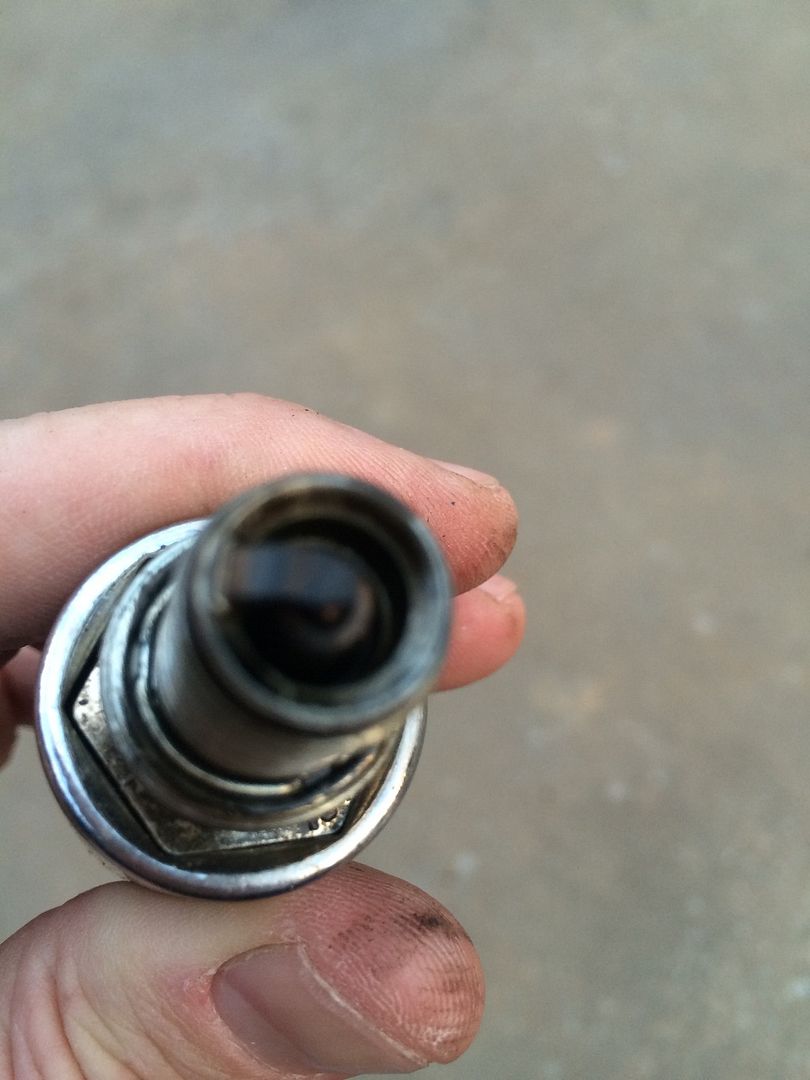

I got my bike pulled apart so I could get to the spark plug and carb.  Here is the plug:



I tried to shut off the motor at the moment it was bogging, but I'm not sure I got that done.

The carb was setup with the following:

Main 170
Pilot 50
Needle in the 3rd position from the top, but it was a R1469M, not the stock R1369N
Air Screw was set at 1 1/2 turns

Any thoughts?
« Last Edit: January 06, 2018, 02:04:55 AM by umberto »
Perhaps I have a dirt bike addiction?

03 KX 250/88 KX 525/2017 KX250F - Goliath
17 KX250F/04 KX250
04 KX 250 - Lunchbox's Bike
05 KX 125/144

Offline umberto

  • Administrator
  • Hero Member
  • *****
  • Posts: 2,488
  • First Ride 02-02-19
Re: Jetting!!! Again and again and again!
« Reply #511 on: November 17, 2015, 12:11:33 PM »
The carb is a Keihin PKW, and the part number on the side is V563EG03.  Does anyone know if that is the stock carb?

I found this one on eBay, and the number is different:

« Last Edit: November 17, 2015, 12:15:29 PM by umberto »
Perhaps I have a dirt bike addiction?

03 KX 250/88 KX 525/2017 KX250F - Goliath
17 KX250F/04 KX250
04 KX 250 - Lunchbox's Bike
05 KX 125/144

Offline Danger4u2

  • Administrator
  • Hero Member
  • *****
  • Posts: 1,616
  • KX500 is Danger4u2 Returning from light speed pic.
    • KXRiders.com
Re: Jetting!!! Again and again and again!
« Reply #512 on: November 17, 2015, 12:17:48 PM »
Plug chop.  I think there's enough room in the field to do this if you want.
I'll go get my 2004 carb. give me a minute.
http://kawtriple.com/mraxl/carb/plugchop.htm

https://www.youtube.com/watch?v=hF3tGEFQ1ZA

Picture doesn't come out clear.
G250 AR10
« Last Edit: November 17, 2015, 12:27:33 PM by Danger4u2 »
KX 500 Rider

Offline Danger4u2

  • Administrator
  • Hero Member
  • *****
  • Posts: 1,616
  • KX500 is Danger4u2 Returning from light speed pic.
    • KXRiders.com
Re: Jetting!!! Again and again and again!
« Reply #513 on: November 17, 2015, 12:30:27 PM »
There is one for sale on ebay, says it's for an 88 KX500.
KX 500 Rider

Offline umberto

  • Administrator
  • Hero Member
  • *****
  • Posts: 2,488
  • First Ride 02-02-19
Re: Jetting!!! Again and again and again!
« Reply #514 on: November 17, 2015, 12:34:52 PM »
Sandblaster's awesome interchange list says that the carb I have is off a 90-93 KX 500 (if I'm reading it correctly).  The 88 carb on eBay says V396, which matches the list as well.

http://www.oem-cycle.com/KAWASAKIKX500BIKEID.shtml
Perhaps I have a dirt bike addiction?

03 KX 250/88 KX 525/2017 KX250F - Goliath
17 KX250F/04 KX250
04 KX 250 - Lunchbox's Bike
05 KX 125/144

Offline umberto

  • Administrator
  • Hero Member
  • *****
  • Posts: 2,488
  • First Ride 02-02-19
Re: Jetting!!! Again and again and again!
« Reply #515 on: November 17, 2015, 12:35:52 PM »
Plug chop.  I think there's enough room in the field to do this if you want.
I'll go get my 2004 carb. give me a minute.
http://kawtriple.com/mraxl/carb/plugchop.htm

https://www.youtube.com/watch?v=hF3tGEFQ1ZA

Picture doesn't come out clear.
G250 AR10

I will take you up on that offer.  I need a better plug reading for sure.
Perhaps I have a dirt bike addiction?

03 KX 250/88 KX 525/2017 KX250F - Goliath
17 KX250F/04 KX250
04 KX 250 - Lunchbox's Bike
05 KX 125/144

Offline umberto

  • Administrator
  • Hero Member
  • *****
  • Posts: 2,488
  • First Ride 02-02-19
Re: Jetting!!! Again and again and again!
« Reply #516 on: November 18, 2015, 01:28:49 AM »
I looked in my manual for the engine, and the stock settings are:

Main - 175
Pilot - 62
Needle - R1369N-3 in the third groove from the top
Air Screw - 1 1/2

Do you think I should start with the FMF settings, stock settings, or the current setting when I do the more in depth plug reading?  The current settings were for the engine with stock bore, 89 and up sleeve, and no KIPS valves.  The motor felt about the same in that as bought configuration as it does now, lazy and very reluctant to rev.

Thank you!
Perhaps I have a dirt bike addiction?

03 KX 250/88 KX 525/2017 KX250F - Goliath
17 KX250F/04 KX250
04 KX 250 - Lunchbox's Bike
05 KX 125/144

Offline sandblaster

  • Global Moderator
  • Hero Member
  • *****
  • Posts: 8,271
    • OEM-CYCLE QUALITY USED PARTS
Re: Jetting!!! Again and again and again!
« Reply #517 on: November 18, 2015, 03:36:49 AM »
I wish I knew more about your needle.
It is the correct needle for a 88 but your carb is a 90-93 which should be a N82R or similar.
I don't know how it would be effected with that 88 needle.
Perhaps someone here would know?

I'm curious, have you done a leak down test (Not a compression test) of that engine after you put the new top end on?
If not I would highly encourage you to do so.

Also, how did your reeds look?
If the reed looks good, with the seat off, start the bike and rev the throttle.
As you rev it up, put your hand over the air filter.
Can you feel air pushing back through the filter?
Is the filter wet with fuel?
If so, then it's time for some new reed pedals.
The four stroke engine: That's one stroke for producing power and three for wearing the engine out.

Offline umberto

  • Administrator
  • Hero Member
  • *****
  • Posts: 2,488
  • First Ride 02-02-19
Re: Jetting!!! Again and again and again!
« Reply #518 on: November 18, 2015, 03:51:35 AM »
I replaced the reeds with new Boyesen stock reeds when I was having issues with the motor the first time.  I also have a VForce 2 block that I can mod if you think that would help.

The needle that is in the carb is a R1469M, the one listed in the manual is a R1369N.  Is a larger number indicative of a richer or leaner needle?

I found a stock 88 carb on eBay, do you think it would be better to start over or should I try to mess with this one some more?  I'm worried it might have been "modified" like the cylinder was.
Perhaps I have a dirt bike addiction?

03 KX 250/88 KX 525/2017 KX250F - Goliath
17 KX250F/04 KX250
04 KX 250 - Lunchbox's Bike
05 KX 125/144

Offline dave916

  • Hero Member
  • *****
  • Posts: 546
Re: Jetting!!! Again and again and again!
« Reply #519 on: November 18, 2015, 06:29:52 AM »
I replaced the reeds with new Boyesen stock reeds when I was having issues with the motor the first time.  I also have a VForce 2 block that I can mod if you think that would help.

The needle that is in the carb is a R1469M, the one listed in the manual is a R1369N.  Is a larger number indicative of a richer or leaner needle?

I found a stock 88 carb on eBay, do you think it would be better to start over or should I try to mess with this one some more?  I'm worried it might have been "modified" like the cylinder was.

Try moving the needle clip position with the 1469 , Try the Top position {leanest] to see if it improves things,
if that impovement things  i would tryA R1369N clip 3 and then leak down test if its still not right

Offline Foxx4Beaver

  • Hero Member
  • *****
  • Posts: 8,952
  • James Stewart DID NOT invent the scrub!!..JoJo
Re: Jetting!!! Again and again and again!
« Reply #520 on: November 18, 2015, 07:47:54 AM »
I wouldn't go from the middle position to the top with the clip...that's too big of a jump at once....try the 2nd from top to start to be safe.
I also agree on finding the correct needle for THAT carb...the N82R...I probably have something within a couple "steps" or two of the "R"...I might have an N82P. I can send one to you if you can't find one.
« Last Edit: November 23, 2015, 12:13:15 AM by Foxx4Beaver »
Excuse me, ma'am...but you've got extremely nice legs!!!...what time do they open???                                                                                                               https://www.youtube.com/watch?v=n8tCgN3aryQ

Offline umberto

  • Administrator
  • Hero Member
  • *****
  • Posts: 2,488
  • First Ride 02-02-19
Re: Jetting!!! Again and again and again!
« Reply #521 on: November 18, 2015, 08:30:53 AM »
I am going to do a leak down test this evening to see if that is the problem or not.  I'll let you guys know what I find.  I won't lie, I'm pretty nervous about doing it.  The last thing I want to do is tear this motor back down again.

Rocky Mountain has the N82 in K, L, M, N, and P.  Any thoughts on which one I should get?  The N and the P are in stock, the other ones they will have to order.  Should I also update the pilot jet?  The stock one is listed as a 55 (I have a 50 now), but they have 58, 60, 62, and 65 in stock.

I really appreciate all the help.  I'd be lost without you guys.
Perhaps I have a dirt bike addiction?

03 KX 250/88 KX 525/2017 KX250F - Goliath
17 KX250F/04 KX250
04 KX 250 - Lunchbox's Bike
05 KX 125/144

Offline dave916

  • Hero Member
  • *****
  • Posts: 546
Re: Jetting!!! Again and again and again!
« Reply #522 on: November 18, 2015, 08:32:52 AM »
I wouldn't go from the middle position to the top with the clip...that's too big of a jump at once....try the 2nd from top to start to be safe.
I also agree with Blaster on finding the correct needle for THAT carb...the N82R...I probably have something within a couple "steps" or two of the "R"...I might have an N82P. I can send one to you if you can't find one.

As it was the wrong needle fitted i did not see any harm on trying it {though it would be like 1369n on 3rd clip ]   , try every clip position if he has time :-D.
 Since he got that motor on ebay, the motor might never have ran with that carb[jetting}
probably  better off trying a good working kx500 carb even thought the jetting on the 88 could vary a little due to bigger case volume

Offline Foxx4Beaver

  • Hero Member
  • *****
  • Posts: 8,952
  • James Stewart DID NOT invent the scrub!!..JoJo
Re: Jetting!!! Again and again and again!
« Reply #523 on: November 18, 2015, 08:37:51 AM »
I'd snatch up a "P"...
don't buy the pilots or main jets from Rocky...they are NOT genuine Keihin, even though they're listed in the OEM Kawie parts fiche/diagram...they're cheap bootlegs.

Buy the mains and pilots from here....
http://pjmotorsports.com/
they sell Genuine Keihin jets.

you can buy the needle from Rocky, it'll be genuine.
Excuse me, ma'am...but you've got extremely nice legs!!!...what time do they open???                                                                                                               https://www.youtube.com/watch?v=n8tCgN3aryQ

Offline dave916

  • Hero Member
  • *****
  • Posts: 546
Re: Jetting!!! Again and again and again!
« Reply #524 on: November 18, 2015, 08:41:13 AM »
I am going to do a leak down test this evening to see if that is the problem or not.  I'll let you guys know what I find.  I won't lie, I'm pretty nervous about doing it.  The last thing I want to do is tear this motor back down again.

Rocky Mountain has the N82 in K, L, M, N, and P.  Any thoughts on which one I should get?  The N and the P are in stock, the other ones they will have to order.  Should I also update the pilot jet?  The stock one is listed as a 55 (I have a 50 now), but they have 58, 60, 62, and 65 in stock.

I really appreciate all the help.  I'd be lost without you guys.

Dont go turning the motor with the inlet blocked {doing the leakdown test} or u could created a leak


Sounds like you a rich on the needle though/
« Last Edit: November 18, 2015, 08:45:29 AM by dave916 »
