Author Topic: Installing 2017 KX 250F plastic on my 2004 KX 250, 2003 250, 2005 125  (Read 95323 times)

0 Members and 3 Guests are viewing this topic.

Offline umberto

  • Administrator
  • Hero Member
  • *****
  • Posts: 2,488
  • First Ride 02-02-19
Re: Installing 2017 KX 250F plastic on my 2004 KX 250
« Reply #15 on: June 05, 2017, 01:53:36 AM »
A little more measuring revealed that even lowering the tank with the heat gun won't make the plastic line up.  I think Pro Circuit spaced the subframe back at the top so the plastics will line up.  I'm actually going to try to call them tomorrow and see if they will reveal some secrets of the swap.  If not, I may just wait until their kit comes out since I have all the stuff already.  No sense tearing stuff up just to try to reinvent the wheel.
The more I think about it, the more I think that that I need to heat the tank and space the subframe.  I may try that before giving in and calling PC.  It would feel a lot better to figure it out on my own.   Like a blind squirrel finding a nut.  :-D
Perhaps I have a dirt bike addiction?

03 KX 250/88 KX 525/2017 KX250F - Goliath
17 KX250F/04 KX250
04 KX 250 - Lunchbox's Bike
05 KX 125/144

Offline umberto

  • Administrator
  • Hero Member
  • *****
  • Posts: 2,488
  • First Ride 02-02-19
Re: Installing 2017 KX 250F plastic on my 2004 KX 250
« Reply #16 on: June 07, 2017, 08:25:53 AM »
I got my Dirt Bike in the mail today, and low and behold it has an article on this very conversion.  It confirms that they used 250F parts, that the subframe has to be moved out at the top, and that the tank was not modified.  I am going to try to fit my parts to my 2005 KX 125 to see if that makes any difference in tank fitment, otherwise I am going to heat mine.

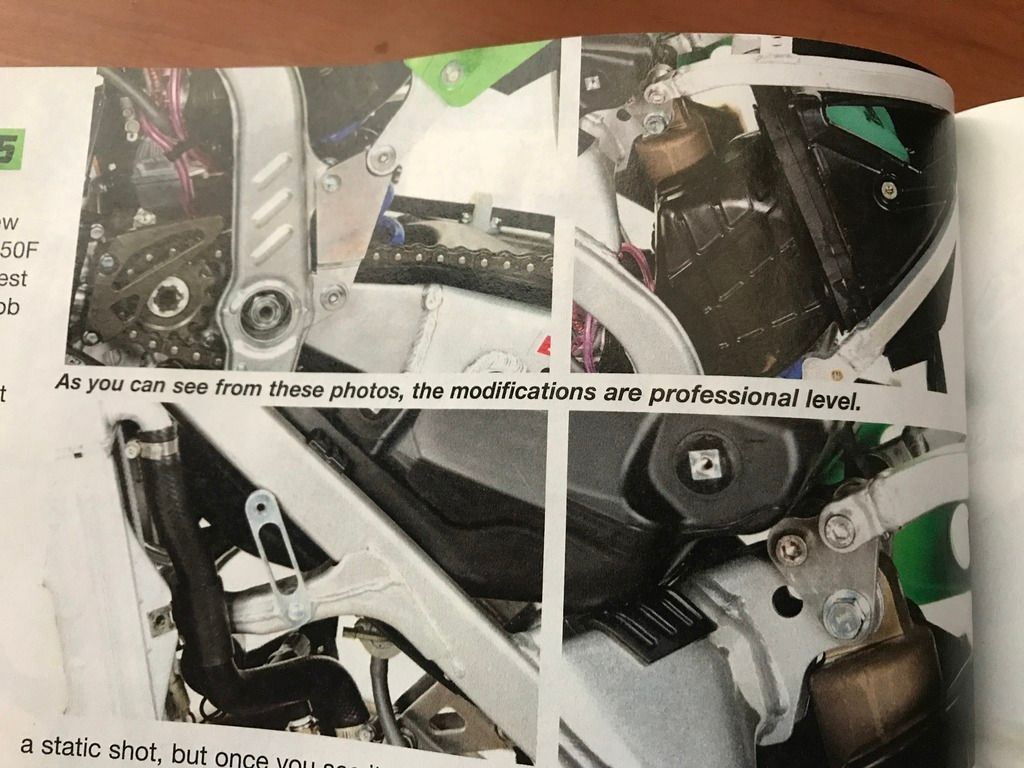

Here are some new pictures they didn't show in the e-mail.  They did there top subframe spacing bracket exactly how I was going to do mine.  It's nice to know I'm on the right track.


« Last Edit: January 06, 2018, 02:34:37 AM by umberto »
Perhaps I have a dirt bike addiction?

03 KX 250/88 KX 525/2017 KX250F - Goliath
17 KX250F/04 KX250
04 KX 250 - Lunchbox's Bike
05 KX 125/144

Offline DP3601

  • Full Member
  • ***
  • Posts: 81
Re: Installing 2017 KX 250F plastic on my 2004 KX 250
« Reply #17 on: June 07, 2017, 11:13:48 PM »
Looks like they have a pretty good build up off the airbox to get it in position also

Offline umberto

  • Administrator
  • Hero Member
  • *****
  • Posts: 2,488
  • First Ride 02-02-19
Re: Installing 2017 KX 250F plastic on my 2004 KX 250
« Reply #18 on: June 08, 2017, 04:37:01 AM »
Looks like they have a pretty good build up off the airbox to get it in position also
I should know more about it next week.  The airbox and cover were back ordered; they finally shipped out today.
Perhaps I have a dirt bike addiction?

03 KX 250/88 KX 525/2017 KX250F - Goliath
17 KX250F/04 KX250
04 KX 250 - Lunchbox's Bike
05 KX 125/144

Offline umberto

  • Administrator
  • Hero Member
  • *****
  • Posts: 2,488
  • First Ride 02-02-19
Re: Installing 2017 KX 250F plastic on my 2004 KX 250
« Reply #19 on: June 09, 2017, 05:30:30 AM »

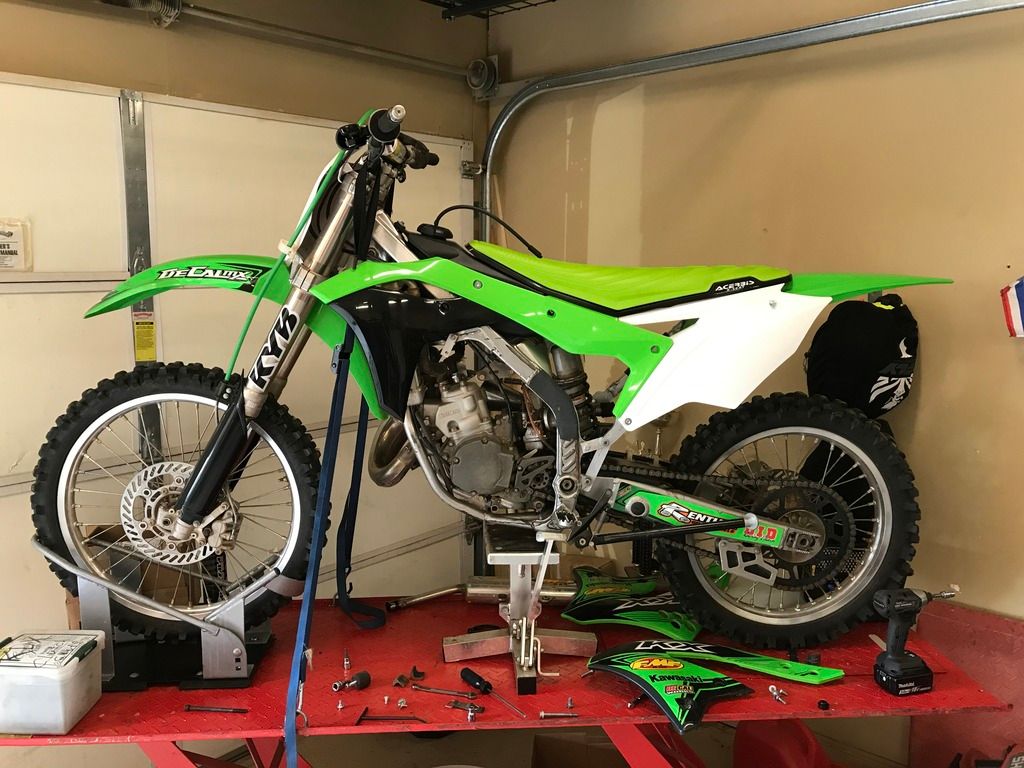

So I tried the conversion on my 125, and it was about the same as my 250.  I think I will need to just heat the tank a little bit to get it to fit correctly.  It's a little off at the back tank bolt.  Anyway, here's everything on my 125:



The rear end appears to be a little low because the front is up in the wheel chock.
« Last Edit: January 06, 2018, 02:34:46 AM by umberto »
Perhaps I have a dirt bike addiction?

03 KX 250/88 KX 525/2017 KX250F - Goliath
17 KX250F/04 KX250
04 KX 250 - Lunchbox's Bike
05 KX 125/144

Offline DP3601

  • Full Member
  • ***
  • Posts: 81
Re: Installing 2017 KX 250F plastic on my 2004 KX 250
« Reply #20 on: June 10, 2017, 11:57:01 AM »
So I tried the conversion on my 125, and it was about the same as my 250.  I think I will need to just heat the tank a little bit to get it to fit correctly.  It's a little off at the back tank bolt.  Anyway, here's everything on my 125:



The rear end appears to be a little low because the front is up in the wheel chock.

Your definitely getting it closer.  Looking good!
« Last Edit: January 06, 2018, 02:34:55 AM by umberto »

Offline skunkworks

  • Jr. Member
  • **
  • Posts: 37
Re: Installing 2017 KX 250F plastic on my 2004 KX 250
« Reply #21 on: August 12, 2017, 02:07:52 AM »
all I'm seeing is photo bucket p500 in place of pics  :?

Offline skunkworks

  • Jr. Member
  • **
  • Posts: 37
Re: Installing 2017 KX 250F plastic on my 2004 KX 250
« Reply #22 on: September 19, 2017, 03:02:56 AM »
same here...wtf?

Offline umberto

  • Administrator
  • Hero Member
  • *****
  • Posts: 2,488
  • First Ride 02-02-19
Re: Installing 2017 KX 250F plastic on my 2004 KX 250
« Reply #23 on: September 19, 2017, 08:37:32 AM »
Photobucket declared war on people using their site to link pictures on websites, even though they clearly offer the service.  If you follow the link, it lets you know that you can restore the link for the low, low price of $399 per year.  No other options, just a $399 plan.  Most people are going to start using Imgur or another site that isn't greedy and evil.

I'm going to fix the links on my story soon so that you can see what's happening again.  Unfortunately I have over 400 links to fix.   :-o
Perhaps I have a dirt bike addiction?

03 KX 250/88 KX 525/2017 KX250F - Goliath
17 KX250F/04 KX250
04 KX 250 - Lunchbox's Bike
05 KX 125/144

Offline shrubitup

  • Jr. Member
  • **
  • Posts: 38
Re: Installing 2017 KX 250F plastic on my 2004 KX 250
« Reply #24 on: September 26, 2017, 05:40:27 PM »
Photobucket declared war on people using their site to link pictures on websites, even though they clearly offer the service.  If you follow the link, it lets you know that you can restore the link for the low, low price of $399 per year.  No other options, just a $399 plan.  Most people are going to start using Imgur or another site that isn't greedy and evil.

I'm going to fix the links on my story soon so that you can see what's happening again.  Unfortunately I have over 400 links to fix.   :-o
This will backfire upon them for soon they'll be R.I.P.  :evil:

Offline motili

  • Newbie
  • *
  • Posts: 1
Re: Installing 2017 KX 250F plastic on my 2004 KX 250
« Reply #25 on: October 11, 2017, 01:37:16 AM »
still waiting to see the photos  :?

Offline umberto

  • Administrator
  • Hero Member
  • *****
  • Posts: 2,488
  • First Ride 02-02-19
Re: Installing 2017 KX 250F plastic on my 2004 KX 250
« Reply #26 on: October 11, 2017, 04:23:32 AM »
Sorry, life keeps getting in the way.  That and my nearly 400 picture links to fix.   :-D  I am going to try to get something written up on Friday for posting via Imgur, and I'm going to need some examples.  I will work on this thread, my aluminum build thread, and my 2003 500 conversion first.  Stay tuned.
Perhaps I have a dirt bike addiction?

03 KX 250/88 KX 525/2017 KX250F - Goliath
17 KX250F/04 KX250
04 KX 250 - Lunchbox's Bike
05 KX 125/144

Offline RoostiusMaximus

  • Sr. Member
  • ****
  • Posts: 301
    • Millar Racing Engines
Re: Installing 2017 KX 250F plastic on my 2004 KX 250
« Reply #27 on: October 13, 2017, 03:37:43 AM »
I host my crap on microsofts "onedrive", no bs advertisements etc.

https://onedrive.live.com/?id=BD4AA2685D9BF2E9%21102&cid=BD4AA2685D9BF2E9

Offline umberto

  • Administrator
  • Hero Member
  • *****
  • Posts: 2,488
  • First Ride 02-02-19
Re: Installing 2017 KX 250F plastic on my 2004 KX 250
« Reply #28 on: October 13, 2017, 09:42:43 AM »
I host my crap on microsofts "onedrive", no bs advertisements etc.

https://onedrive.live.com/?id=BD4AA2685D9BF2E9%21102&cid=BD4AA2685D9BF2E9
I'll give that a try as well; it's good to have choices. Thank you Rosstius.
Perhaps I have a dirt bike addiction?

03 KX 250/88 KX 525/2017 KX250F - Goliath
17 KX250F/04 KX250
04 KX 250 - Lunchbox's Bike
05 KX 125/144

Offline umberto

  • Administrator
  • Hero Member
  • *****
  • Posts: 2,488
  • First Ride 02-02-19
Re: Installing 2017 KX 250F plastic on my 2004 KX 250
« Reply #29 on: May 06, 2018, 02:33:19 AM »
I got off this project when I decided to buy the frame and other bits from the guy I got the subframe and tank from to do an actual 2017 conversion.  A couple of weeks ago, another member posted a link to an eBay kit that looks really well thought out.  It included a spacer for the airbox that will solve a problem on my conversion, so I negotiated a deal with the guy to buy a kit and include an extra spacer for a bit more.  I think I'm going to try the kit on Goliath or my son's 04, as I still have a few bits left over.  I'll post pictures once I get the kit in my hands.

Here's that kit I bought:  https://www.ebay.com/itm/2018-kx250f-plastic-conversion-kit-2003-and-up-kx125-International/282938774578?_trkparms=aid%3D111001%26algo%3DREC.SEED%26ao%3D1%26asc%3D51378%26meid%3D30055a94527a478eabc4afa36d951bc0%26pid%3D100675%26rk%3D3%26rkt%3D15%26sd%3D222867404308%26itm%3D282938774578&_trksid=p2481888.c100675.m4236&_trkparms=pageci%3A4531bac9-513a-11e8-a5ce-74dbd1809405%7Cparentrq%3A35de0bad1630ab6bb35d7739fffe3479%7Ciid%3A1
