Re: 2003 KX 250 SF Conversion
« Reply #255 on: November 06, 2016, 08:39:09 AM »
Those came from an 88 that Sandblaster was parting out.  I may try to snatch up the cylinder head as well.

At a glance they look like 89on , not the best pictures though
How many kipps holes on base gasket surface

The 88 stuff will fit on the 89 cases ok



Offline sandblaster

  • Global Moderator
  • Hero Member
  • *****
  • Posts: 8,271
    • OEM-CYCLE QUALITY USED PARTS
Re: 2003 KX 250 SF Conversion
« Reply #256 on: November 06, 2016, 10:33:37 AM »
I wished they were 89 and on... I would have sold them for WAY more  :-D
The four stroke engine: That's one stroke for producing power and three for wearing the engine out.

Offline dave916

  • Hero Member
  • *****
  • Posts: 546
Re: 2003 KX 250 SF Conversion
« Reply #257 on: November 06, 2016, 11:11:48 AM »
I wished they were 89 and on... I would have sold them for WAY more  :-D

The left one in picture {clutch side} is defiantly 89on
Not 100% sure about flywheel side unless i see the inner or top side

Maybe someone fitted a set of 89 cases to the 88motor  sometime
« Last Edit: November 06, 2016, 11:15:14 AM by dave916 »

Offline umberto

  • Administrator
  • Hero Member
  • *****
  • Posts: 2,488
  • First Ride 02-02-19
Re: 2003 KX 250 SF Conversion
« Reply #258 on: November 06, 2016, 11:52:30 AM »
I'll try to get some more pictures tomorrow for you guys to look at.
Perhaps I have a dirt bike addiction?

03 KX 250/88 KX 525/2017 KX250F - Goliath
17 KX250F/04 KX250
04 KX 250 - Lunchbox's Bike
05 KX 125/144

Offline umberto

  • Administrator
  • Hero Member
  • *****
  • Posts: 2,488
  • First Ride 02-02-19
Re: 2003 KX 250 SF Conversion
« Reply #259 on: November 07, 2016, 02:31:19 PM »

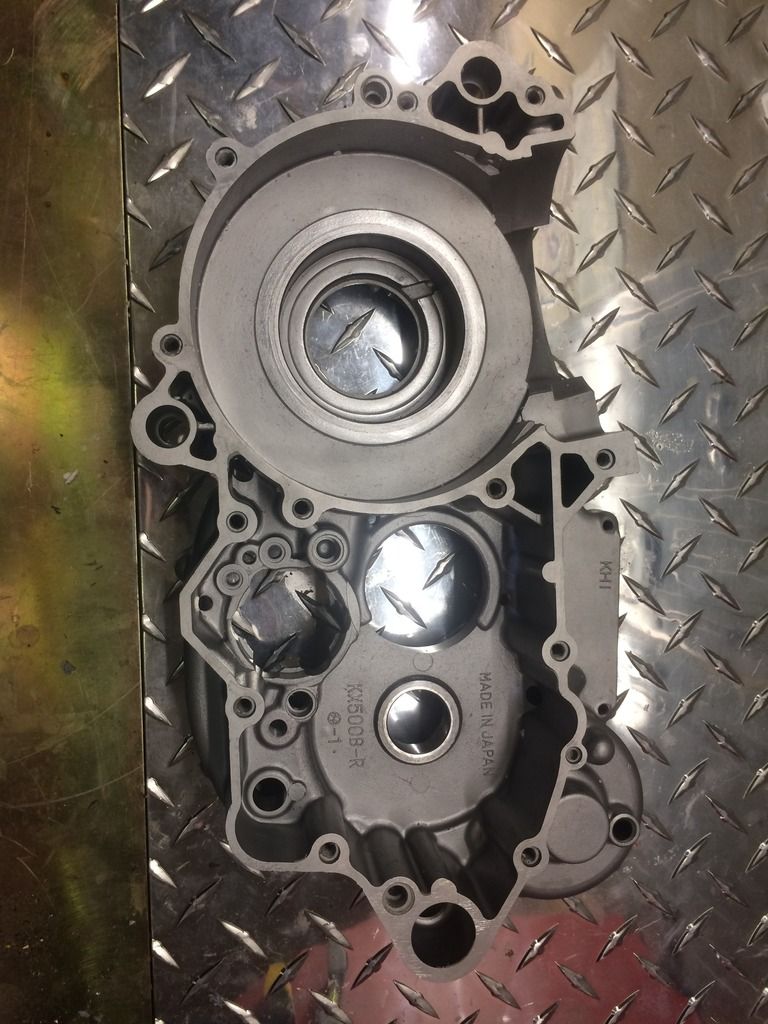

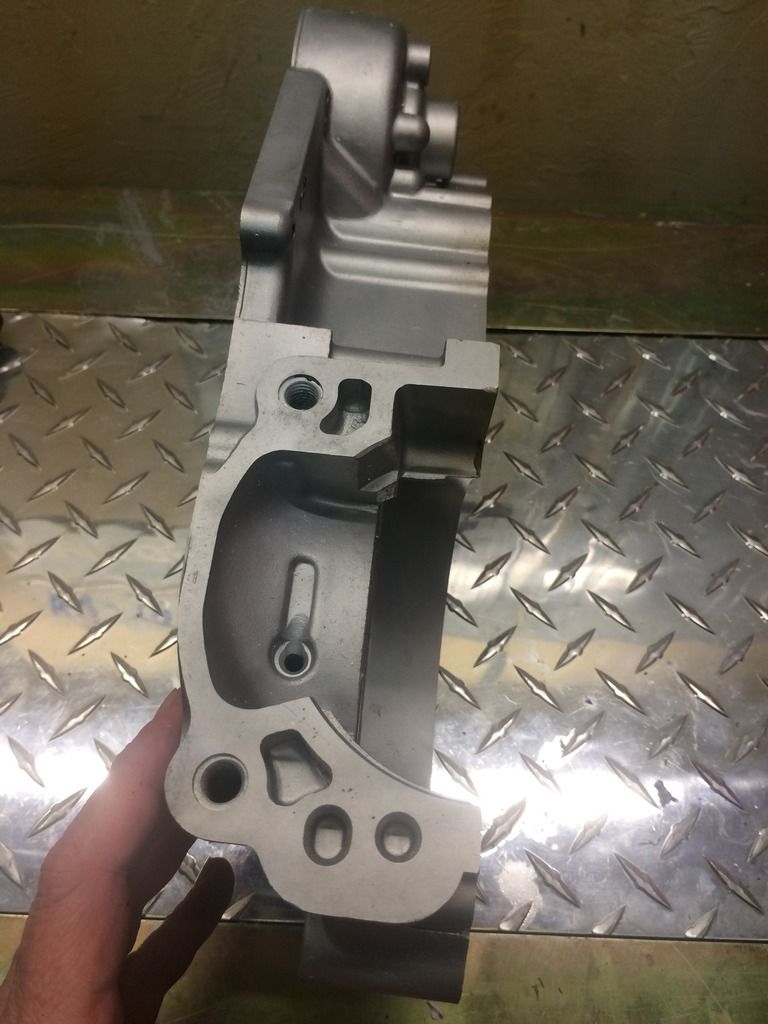

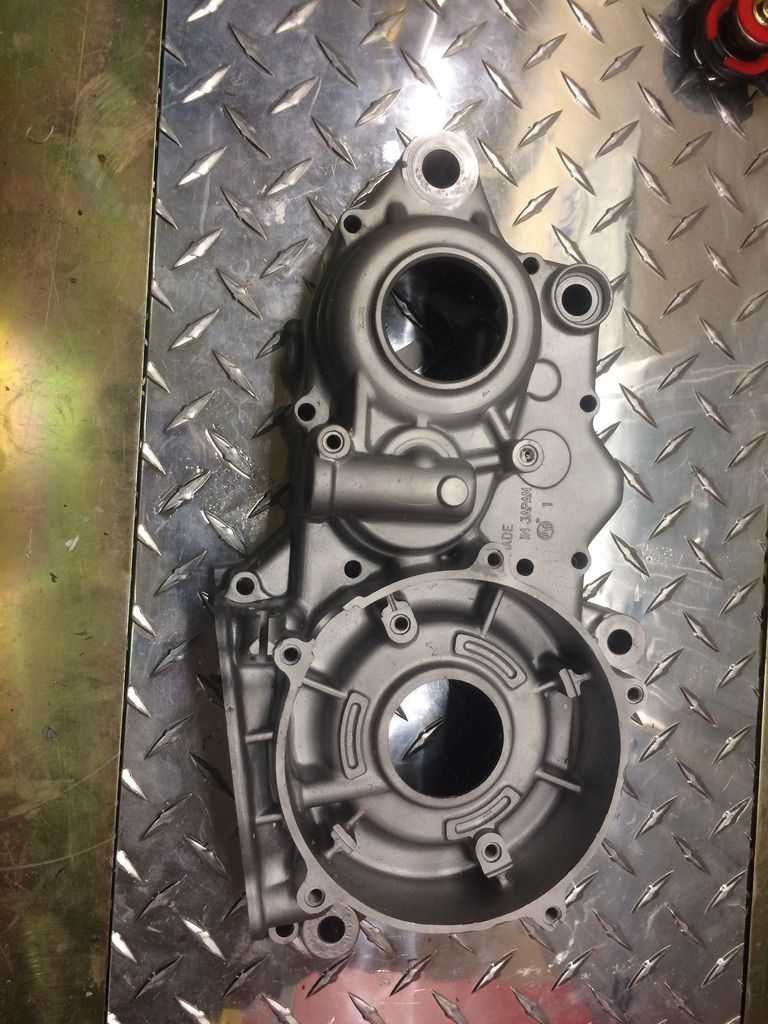

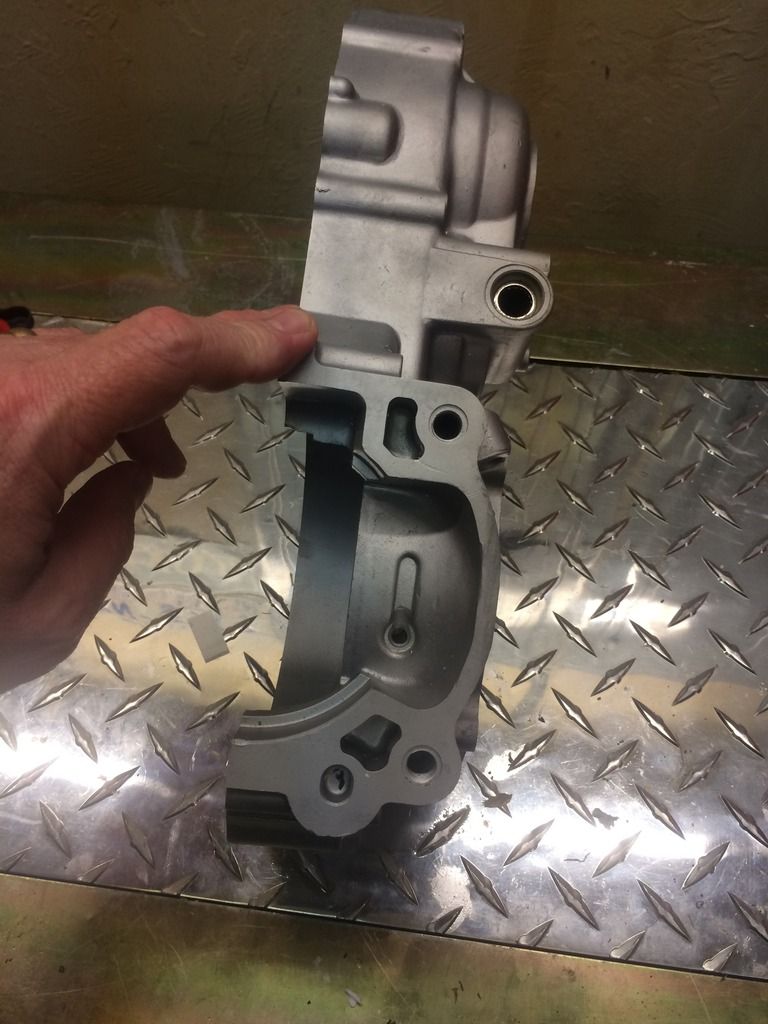

Here are some pictures of the cases from a little closer with better lighting.






« Last Edit: January 05, 2018, 02:50:31 PM by umberto »
Perhaps I have a dirt bike addiction?

03 KX 250/88 KX 525/2017 KX250F - Goliath
17 KX250F/04 KX250
04 KX 250 - Lunchbox's Bike
05 KX 125/144

Offline umberto

  • Administrator
  • Hero Member
  • *****
  • Posts: 2,488
  • First Ride 02-02-19
Re: 2003 KX 250 SF Conversion
« Reply #260 on: November 07, 2016, 02:37:12 PM »
I guess I should ask the obvious question: If the clutch side is 89 and up, will it still work with the ignition side if it's an 88?
Perhaps I have a dirt bike addiction?

03 KX 250/88 KX 525/2017 KX250F - Goliath
17 KX250F/04 KX250
04 KX 250 - Lunchbox's Bike
05 KX 125/144

Offline dave916

  • Hero Member
  • *****
  • Posts: 546
Re: 2003 KX 250 SF Conversion
« Reply #261 on: November 07, 2016, 09:08:03 PM »
I guess I should ask the obvious question: If the clutch side is 89 and up, will it still work with the ignition side if it's an 88?

They are a set of 89on cases / they look pretty good

No problem fitting ur 88 stuff to them  , only extra bits u need are a case pin dowel  /gearbox bearing retainair {about $8 total}

Main differance on cases are extra hole for  kips{88 top end still fits }
 Bigger engine mount hole 10mm /8mm on 88
Less case volume on 89on {which might not ideally suit you big bore}  but at least u have option of fitting a later topend

89 case are way to go
« Last Edit: November 07, 2016, 09:09:59 PM by dave916 »

Offline umberto

  • Administrator
  • Hero Member
  • *****
  • Posts: 2,488
  • First Ride 02-02-19
Re: 2003 KX 250 SF Conversion
« Reply #262 on: November 08, 2016, 04:01:47 AM »

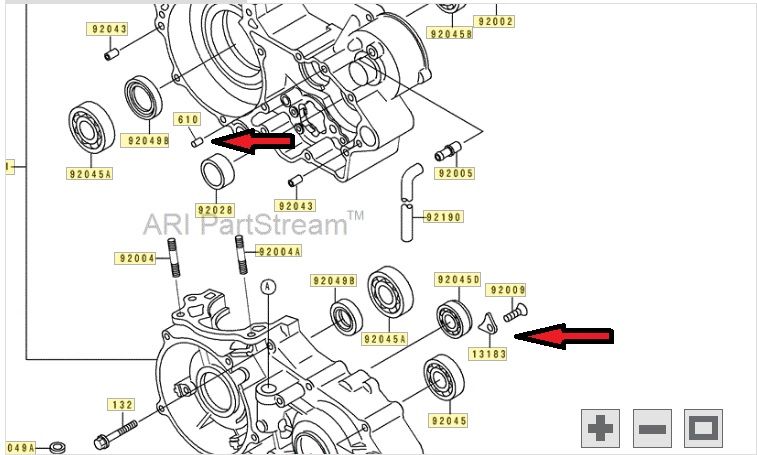

Do I just need these two items?

« Last Edit: January 05, 2018, 02:50:49 PM by umberto »
Perhaps I have a dirt bike addiction?

03 KX 250/88 KX 525/2017 KX250F - Goliath
17 KX250F/04 KX250
04 KX 250 - Lunchbox's Bike
05 KX 125/144

Offline dave916

  • Hero Member
  • *****
  • Posts: 546
Re: 2003 KX 250 SF Conversion
« Reply #263 on: November 08, 2016, 06:43:38 AM »
That them :-)

IF you had a early motor {86} the 89 cases would not work



Offline umberto

  • Administrator
  • Hero Member
  • *****
  • Posts: 2,488
  • First Ride 02-02-19
Re: 2003 KX 250 SF Conversion
« Reply #264 on: January 29, 2017, 02:42:29 PM »
I've been trying to increase Goliath's fuel capacity for a long time now, without much luck. The IMS and Clarke tanks for the 2004 didn't work, they hit the head where the petcock came down.  The IMS tank for the 2007 had the same problem. ZZ3GMC suggested the Clarke 2005 to 2007 tank, so I ordered one from justgastanks.com in black. It finally came in Friday and I had a chance to work on it today. It did not have the deep petcock area so it was much closer to fitting than any of the other tanks, but it did need some adjustment. I was having the most problems in the head stay area, which required both some grinding on the head stay and heat gun work. In order to spread out the pressure and not poke a hole, I made a cover for the area out of 2" PVC that I cut lengthwise so it would slip over the area.   I would heat the area on the tank, and then put the tank on bike so I could apply pressure and hold it while it cooled.  I slowly added some Gorilla Tape to make the PVC thicker, and re-heated the area. It was slow going, and the PVC piece had to be pretty thick with tape when I was done, but it fits really well.

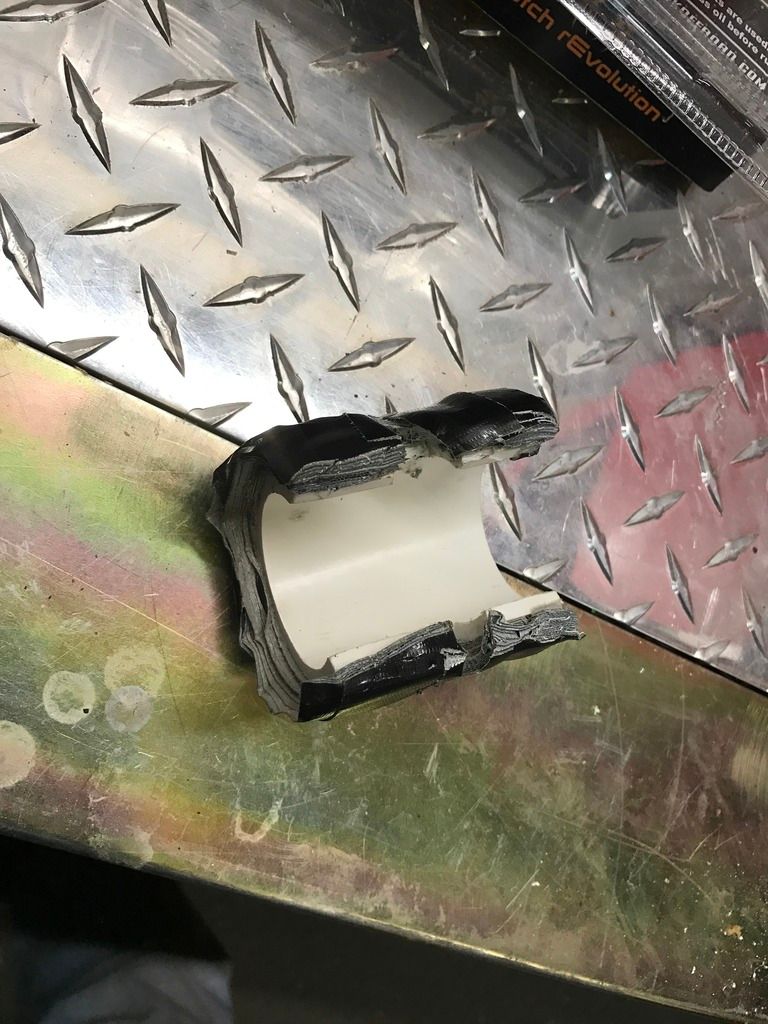

Here is the PVC piece:

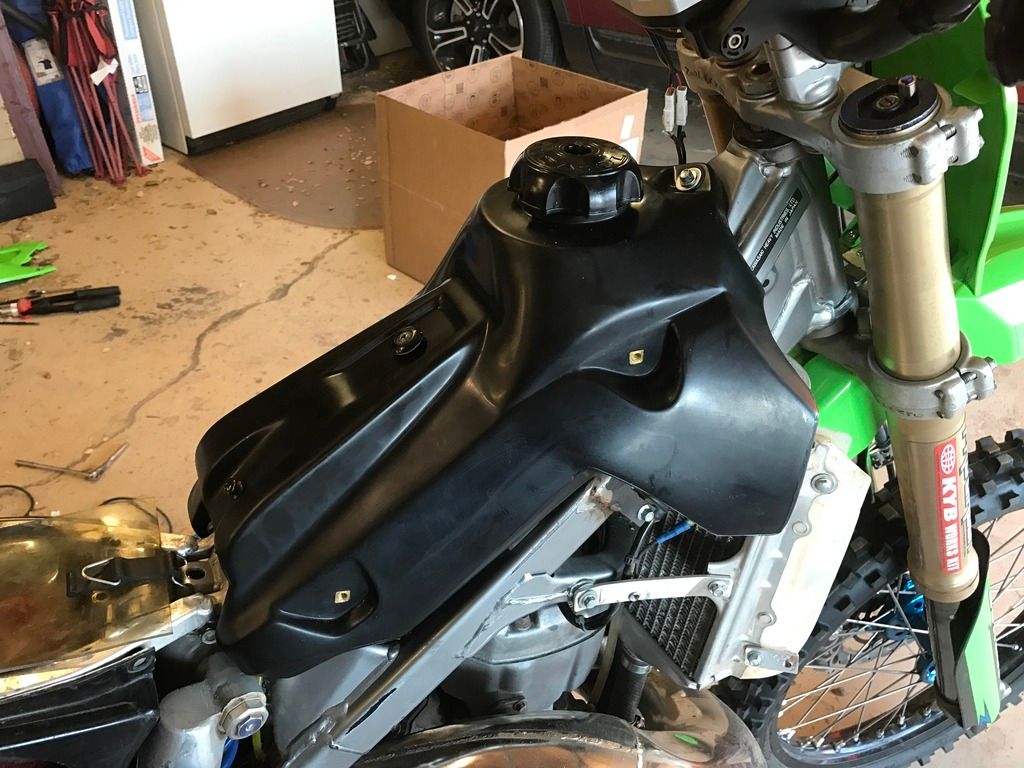

Here is the tank mounted:



All buttoned up and ready to go:

« Last Edit: January 05, 2018, 02:51:30 PM by umberto »
Perhaps I have a dirt bike addiction?

03 KX 250/88 KX 525/2017 KX250F - Goliath
17 KX250F/04 KX250
04 KX 250 - Lunchbox's Bike
05 KX 125/144

Offline zz3gmc

  • Full Member
  • ***
  • Posts: 178
Re: 2003 KX 250 SF Conversion
« Reply #265 on: January 30, 2017, 11:12:18 AM »
Did you use the standard mounting hole by the steering head? My tank is spaced up slightly. I made a short extension bracket and bolted it to the existing mounting hole which let me mount the tank flush with the frame and forward. My lower radiator mount is moved forward about an 1/8" to provide clearance by the head for the bottom of the radiator tanks. If left in the stock position the tanks hit the head. Ill be putting the bike back together (after a loooong 2 year rebuild) so Ill try to take pics.

Offline sandblaster

  • Global Moderator
  • Hero Member
  • *****
  • Posts: 8,271
    • OEM-CYCLE QUALITY USED PARTS
Re: 2003 KX 250 SF Conversion
« Reply #266 on: January 30, 2017, 01:12:42 PM »
Wow!
Very nice work.
Somehow I missed the questions on the cases..
Sorry about that...
The four stroke engine: That's one stroke for producing power and three for wearing the engine out.

Offline umberto

  • Administrator
  • Hero Member
  • *****
  • Posts: 2,488
  • First Ride 02-02-19
Re: 2003 KX 250 SF Conversion
« Reply #267 on: January 30, 2017, 01:31:04 PM »
Did you use the standard mounting hole by the steering head? My tank is spaced up slightly. I made a short extension bracket and bolted it to the existing mounting hole which let me mount the tank flush with the frame and forward. My lower radiator mount is moved forward about an 1/8" to provide clearance by the head for the bottom of the radiator tanks. If left in the stock position the tanks hit the head. Ill be putting the bike back together (after a loooong 2 year rebuild) so Ill try to take pics.
I did have to redo my top mount with a small bracket, but it fits down pretty close to flush in the back. It clears the head and everything else really well now. Thank you for suggesting the Clarke tank, it saved me a lot of work and expense with plastic welding.
Perhaps I have a dirt bike addiction?

03 KX 250/88 KX 525/2017 KX250F - Goliath
17 KX250F/04 KX250
04 KX 250 - Lunchbox's Bike
05 KX 125/144

Offline umberto

  • Administrator
  • Hero Member
  • *****
  • Posts: 2,488
  • First Ride 02-02-19
Re: 2003 KX 250 SF Conversion
« Reply #268 on: January 30, 2017, 01:37:08 PM »
Wow!
Very nice work.
Somehow I missed the questions on the cases..
Sorry about that...
Thank you sandblaster!  No worries on missing the question, I know you've been busy.
Perhaps I have a dirt bike addiction?

03 KX 250/88 KX 525/2017 KX250F - Goliath
17 KX250F/04 KX250
04 KX 250 - Lunchbox's Bike
05 KX 125/144

Offline umberto

  • Administrator
  • Hero Member
  • *****
  • Posts: 2,488
  • First Ride 02-02-19
Re: 2003 KX 250 SF Conversion
« Reply #269 on: February 12, 2017, 08:29:55 AM »

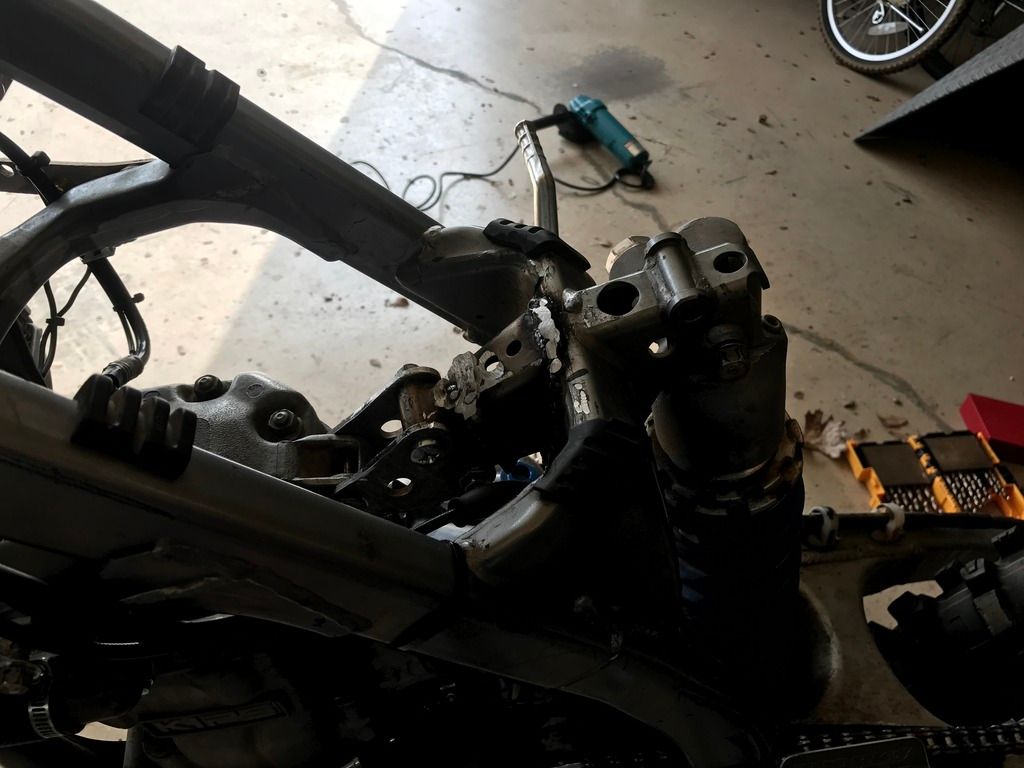

I got the oversized tank to fit, but there were a couple of areas that concerned me and I kept remembering that zz3gmc told me that he had to center his head stay mount in order for the tank to fit.  I decided to tear Goliath back down and center the head stay to gain more clearance by the petcock area.  It was about a four hour project, but it was really worth it as I gained some clearance behind the petcock.  In welding class I had previously cut the stock head stay back, shortened it, and put a piece of plate in to connect the two halves.  I did not move it from the stock offset location, which is about 1 1/2 inches off the shock mount.  I moved it over today to be in line with the shock mount.  Much further the other way and it would hit the other side of the tank.
